Description

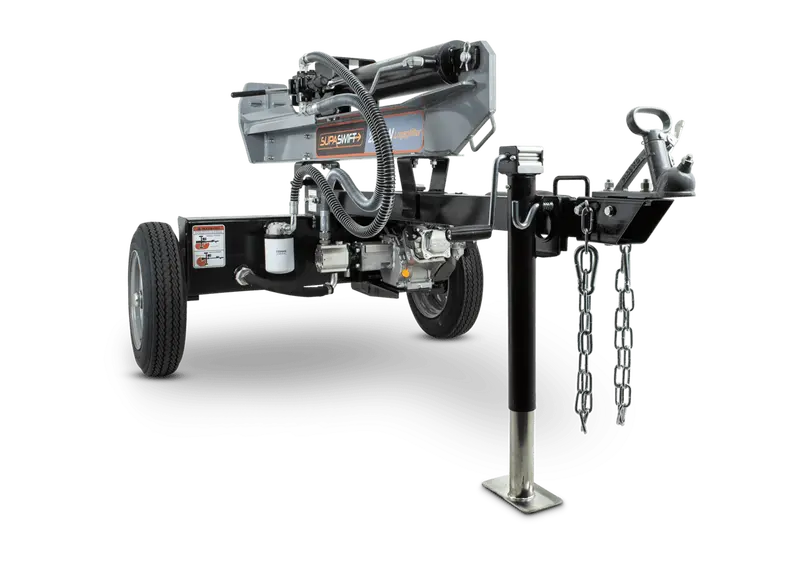

SupaSwift 525ALS 25-Ton Log Splitter
The SupaSwift 25-Ton log splitter provides quality and power at an affordable price. Fitted with a SupaSwift 6.5 hp (196 cc) engine, a manually activated auto return valve with an 10.9 second cycle time and quality features throughout this log splitter will provide many years of reliable service.
- Quality Engine – SupaSwift 6.5 hp (196 cc) single cylinder, horizontal shaft OHV engine.
- Horizontal or vertical operation.
- 25 Tons of splitting force.
- Manually activated auto return valve.
- Two stage pump 13 GPM (49.21 litres per minute).
- Valve – Ergonomically positioned for operator comfort.
- Wedge: 8.5 ” (215.9 mm) High angled heat treated steel.
- Wheels / Tyres*: 4.80″ x 12″ D.O.T certified.
- Beam: 8.5″ (215.9 mm) Foot plate.
- The beam and axe head are heavily reinforced, and the paint is a chip resistant hammertone finish.
Specifications
Warranty Information
Domestic Warranty: 3 Year Domestic WarrantyCommercial Warranty: 3 Month Commercial WarrantyHire/Rental Warranty: 3 Month Hire/Rental Warranty
Miscellaneous
Wedge: (mm): 8.5 ” (215.9 mm) High angled heat treated steelCapacity: 25 Tons of splitting forceValve: Manually activated auto return valve with adjustable detentWheels / Tyres: *D.O.T approved 12″ x 4.80″ multi lug trailer wheel
Engine and Fuel Specs
Engine: SupaSwift 6.5 hp (196 cc) single cylinder, horizontal shaft OHV engine
Log Splitter Specs
Hydraulic Ram Cylinder: (mm): Outside: 114.3 mm x 609.6 mm stroke / Inside: 101.6 mm x 622.3 mm strokeHydraulic Tank Capacity: (L): 25.5 litresMaximum Log Length: (mm): 25″ / 635 mmPump: (L): Two stage pump 13 GPM (49.21 litres per minute)Tow Hitch: (mm): *2″ (50 mm) ball hitch with safety chains – Aust style trailer bail hitchOperating Position: Horizontal or vertical operationCycle Time: 10.9 seconds (down and back)Beam (mm): 8.5″ Foot plate / 215.9 mm Foot plateRam Size: 1.75″ (44.45 mm) Dia
